Events

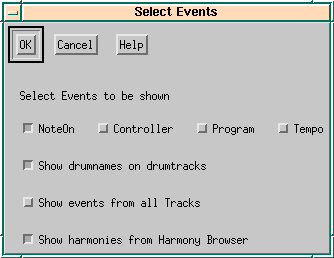

Figure 3.3: Pianowin show-events dialog

You can specify what events are to be shown in the pianowin.

• NoteOn, Controller, Program, Tempo. These events can be shown and edited in the pianowin. If you select exactly one, the piano at the left hand side will be replaced by a list of controller- or program names.
• Show drumnames. Switch it off if you prefer to see the piano keyboard instead of drumnames.
• Show events from all tracks. Displays all events ('multi track mode'). Events from active track are shown red, the others grey. Clicking with the right mouse button on a grey event changes the actual track.
• Show harmonies from harmonybrowser. Displays the chords and scales from the harmony browser. To see the chords, you must first open the harmonybrowser and define a chord sequence. Then you have to mark some bars in the trackwin to show, where the chords should go. Now the pianowin shows notes from chords in light blue and notes from the scale in light green.
